    Large Diameter Alumina Ceramic Tubes Al2O3 Ceramic Sleeve High Temperature Resistant

    Ask Lasest Price
    Brand Name : YUBEI
    Certification : ISO9001
    Price : Negotiate
    Supply Ability : 20pcs one month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Large Diameter Alumina Ceramic Tubes Al2O3 Ceramic Sleeve High Temperature Resistant

    Large Diameter Alumina Ceramic Tube Al2O3 Ceramic Sleeve High Temperature Resistant

    Alumina ceramic is the most widely used fine ceramics material. Alumina ceramic material has superb material characteristics such as high electrical insulation, high mechanical strength, high wear and chemical resistance, and excellent thermal stability, which makes it widely used in areas of high temperatures resistant required.


    The industrial ceramics manufacturing process typically involves a number of stages. The process starts with preparing the raw materials for fabrication. Via pressing or molding methods, making the raw materials into green ceramic parts. Then firing or sintering them into shape using a chemical process. Finally, the ceramic is finished via different forms of polishing and glazing.


    SizeCustomized
    Material99% Al2O3
    Lead time30 days
    FormingDry pressing or cold isostatic pressing
    ProcessingPrecision grinding

    Specifications:


    PropertiesItemUnit99% Alumina95% Alumina
    Mechanical PropertyColor--Light YellowWhite
    Mechanical PropertyDensityg/cm33.853.6
    Mechanical PropertyBending StrengthMPa310300
    Mechanical PropertyCompressive StrengthMPa24002300
    Mechanical PropertyElastic ModulusGPa340320
    Mechanical PropertyFracture ToughnessMPam1/23-43-4
    Mechanical PropertyWeber Coefficientm1212
    Mechanical PropertyVickers HardnessHV0.516001400
    Thermal PropertyCoefficient of Line Thermal Expansion10-6K-17-87-8
    Thermal PropertyThermal ConductivityW/mK2920
    Thermal PropertyThermal Shock Resistance( in water)ΔT℃200250
    Thermal PropertyMax Working Temperature16001500
    Electrical PropertyVolume Resistance at 20℃Ωcm>1014>1014
    Electrical PropertyDielectric StrengthV/m15X10615X106
    Electrical PropertyDielectric Constantεr10

    9

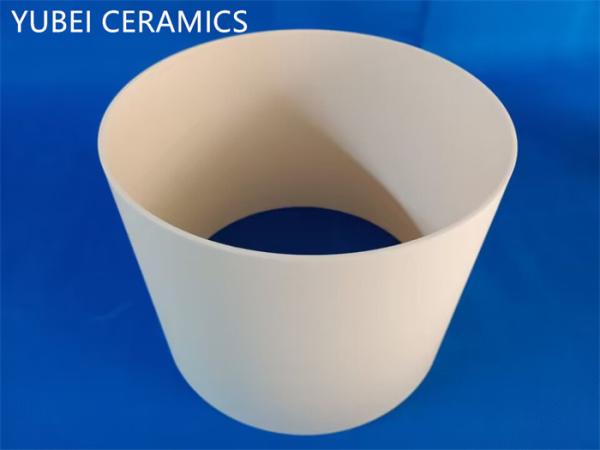

    99% Alumina Ceramic Tube
