Wear-Resistant Structual Ceramic Industrial Mechanical Alumina
Ceramic
Alumina ceramics are composed of aluminum oxide. The high thermal
conductivity, high resistance to heat, excellent electrical
insulation property, and high resistance to chemical corrosion of
aluminum oxide mateials are some of the factors why they are a
choice material for many industrial processes.
Specifications:
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 | 9 |

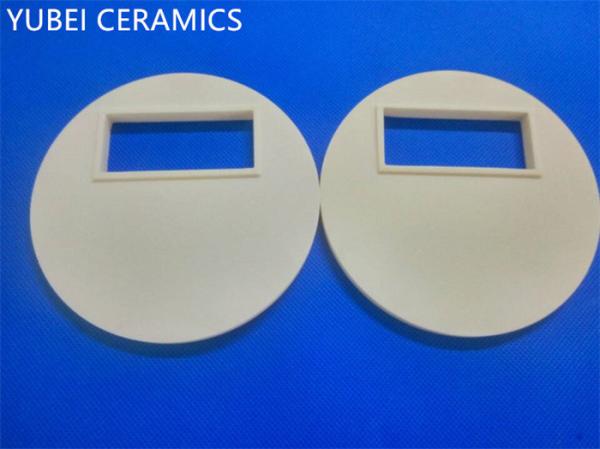

99% Wear-resistant Alumina Ceramic
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally.
Our main products are alumina ceramics, zirconia ceramics and sic
ceramics.
2. What's the size of it?
Products are always customized according to drawings or samples.
Diameter and height within 500mm are available.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. What's the production process?
Our products are made mainly in cold isostatic pressing, dry
pressing and hot press moulding technique. Hot press moulding
technique, which was used to shape small and medium size and
complicated structure ceramic, is a favorable method.
5. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to
finish. Some special products maybe take a longer time. For some
simple products, maybe 10-15 days is ok.
6. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics
are fragile products, will use some breakage-proof materials to
protect them.
7. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines,
carves-milling machines to make sure products' accuracy.
8. Which is the nearest port?
Shanghai port is the nearest one from us. It takes about 2-3 hours
to get to shanghai port.
