    Water Pump Mechanical Seal Ring 350GPa High Temperature Silicone O Rings

    Ask Lasest Price
    Brand Name : YUBEI
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

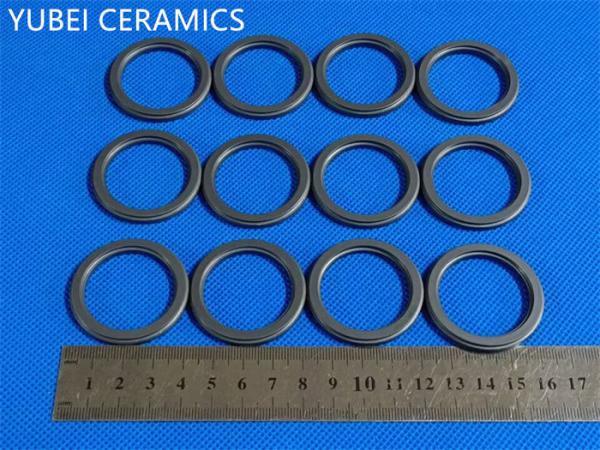

    Water Pump Mechanical Seal Ring 350GPa High Temperature Silicone O Rings

    Water Pump Mechanical Seal Ring Black Silicon O Rings High Temperature Sic Rings

    Silicon carbide (SiC) is one of the hardest technical ceramics available. Combined with its high thermal conductivity and superb corrosion resistant properties, silicon carbide ceramics are excellent materials for challenging application areas.

    Sintered silicon carbide is engineered using non-oxide sintering aids and high-temperature forming process in inert atmospheres.

    Reaction bonding is made to infiltrate the green body to form additional sic grains that bond with the primary ceramic. This material is typically used to increase thermal shock resistance.

    Technical parameters of SSIC:

    ItemsUnitSSIC
    Volume densityg/cm3≥3.10
    HardnessHRA≥92
    Compressive strengthMPa≥2200
    Flexural strengthMPa≥400
    Silicon carbide content%≥98
    Modulus of elasticityGPa400
    Thermal conductivityW/mK100-120
    Max working temperature1600
    Coefficient of thermal expansion1.10-6m/k4.0

    Technical parameters of RBSIC:

    ItemsUnitRBSIC
    Volume densityg/cm3≥3.03
    HardnessHRA≥90
    Compressive strengthMPa≥2000
    Flexural strengthMPa≥350
    Free silicon content%≤12
    Modulus of elasticityGPa350
    Thermal conductivityW/mK50-100
    Max working temperature1100












    Quality Water Pump Mechanical Seal Ring 350GPa High Temperature Silicone O Rings for sale
